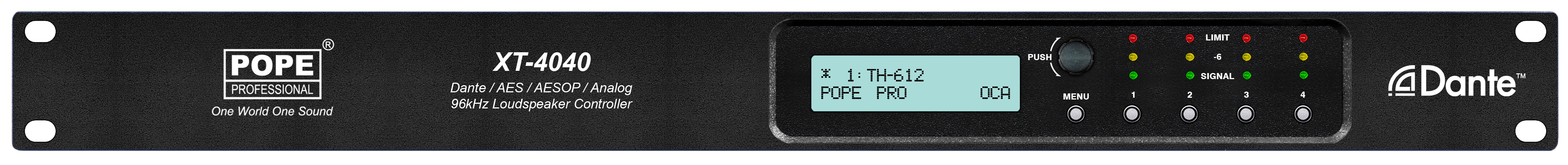

XT-4040

Description

The POPE Professional® XT-4040 is our most complete fixed architecture digital processor with a focus on audio performance, FIR / IIR filters, and digital I/O flexibility. Our state of the art processor provides 96 kHz sampling, 40 bit floating point Analog Devices Sharc DSP engine, high performance 24 bit converters, precise algorithms, FIR / IIR crossover filters, Analog, AES67, AESOP & Dante inputs. The result is best in class audio performance and feature set.

The POPE Professional® XT-4040 can be configured stand alone or remote controlled via with the supplied POPE Professional® SoundNet* Networking software application GUI. This Graphic User Interface is not only gives a clear overview off all settings, but at the same time provides you with real time hands on control over all your system parameters. For both fixed and touring applications, the XT-4040 offers you reliable top high end quality sound.

The XT-4040 DSP is having on board Analog, AESOP digital input, FIR / IIR filters and SoundNet® Networking. The customer can add POPE Professional ® SN-2 AES67 or SN-4 Dante module at any time to enable digital signal input. The SN-2 or SN-4 digital signal input modules is an optional.

MORE INFO

XT-4040

Applications

- Live Sound
- Touring Concerts
- Club Systems
- Places of Worship
- Large Nightclubs
- Cinema Theaters

Features

- AES67 / Dante / AESOP Digital Input
- Analog 4 in 4 out configuration
- FIR / IIR Filter per Input & Output*
- Supplied with SoundNet Networking software
- Ethernet Connectivity*
- 24 bit AD/DA converters
- Sampling rate 96 kHz - 40 bit floating point DSP
- X-Over, Dynamic / RMS / PEAK Limiters
- Phase correction and 24 Presets*
- Up to 255 devices in one network
- 1U Rack design

Specifications

Model	XT-4040
Class	4 In / 4 Out Digital Signal Processor

Front Panel Controls
Display	OLED Display
Level meters	5 Segment LEDs
Menu Selection	1 Dial Encoder

Connectors
Analog	3-pin XLR (four female for input & four male for output)
Networking	2 x RJ-45 Female
AES67 / DanteÂ® Module	Male 2 x 25 pin dual header connector, Plastic quick connector

Power	Standard IEC Socket

Inputs and Outputs
Input Impedance	>10k Ohms
Output Impedance	50 Ohms
Maximum Level	+20dBu
Type	Electronically balanced

Audio Performance
Frequency Response	20 to 20kHz
Dynamic Range	115 dB typ (unweighted)
CMMR	>100dB (50 to 10kHz)
S/N Ratio	> 117dBA on analog In- / Output
	> 120dBA on Dante Input / AES
THD+N	< -100dB @ 1kHz

Digital Audio Performance
Processor (DSP)	40-Bit Floating Point
Sampling Rate	96kHz
Analog Converters	Super Performance 24-bit
Propagation Delay	1.5ms (1.75-7.75 with FIR)

Audio Control Parameters
Gain	-100 to +15dB in 0.1 dB steps
Polarity	+/-
Delay	Up to 300 ms per In, 20 ms per Out, 400 ms per Group

In - Gain / IIR
Variable Equalizer	7 per In
Mode	BYPASS, PEAK EQ, HP 12dB, LP 112dB, HISHELV, LOSHELV, HISHELV-Q, LOSHELV-Q
Gain	-15 to +15dB in 0.1dB steps
Frequency	20Hz to 20kHz

In - FIR	Load / Flat / Builder

Out - Filter
Variable Equalizer	10 per Out
Mode	BYPASS, PEAK EQ, HP 12dB, LP 112dB, HISHELV, LOSHELV, HISHELV-Q, LOSHELV-Q, ALLPASS1, ALLPASS2
Gain	-15 to +15dB in 0.1dB steps
Frequency	20Hz to 20kHz
Quality	0.5-100

X-Over
Frequency	20Hz to 20kHz
Mode	BS LP6, BS LP12, BS LP18, BS LP24, BS LP48, BS HP6, BS HP12, BS HP18, BS HP24, BS HP48
	BW LP6, BW LP12, BW LP18, BW LP24, BW LP48, BW HP6, BW HP12, BW HP18, BW HP24, BW HP48
	LR LP12, LR LP24, LR HP12, LR HP24
	Hardmann HP24, Hardmann HP48

Out - FIR	Load / Flat

Limiter
RMS
Threshold	-60dBFs to 10dBFs
Attack time	10 to 10000 ms
Release time	10 to 10000 ms
PEAK
Threshold	-60dBFs to 10dBFs
Attack time	0 to 1000 ms
Release time	1 to 5000 ms

DYNAMIC
Threshold	-60dBFs to 10dBFs
Slope	0.50 to 5
Attack time	1 to 1000 ms
Release time	1 to 5000 ms

Mode	PEAK EQ, HISHELV, LOSHELV, HISHELV-Q, LOSHELV-Q
Frequency	20Hz to 20kHz
Quality	0.5 - 100

Filter 1 & 2
Gain	-15 to +15dB in 0.1dB steps
Frequency	20Hz to 20kHz
Quality	0.5 - 100

Line Array	BYPASS, PEAK EQ, HP 12dB, LP 12dB, HISHELV, LOSHELV, HP 6 dB, LP 6dB, HISHELV-Q, LOSHELV-Q
Line Length	1 to 20
Frequency	20Hz to 20kHz
Gain	-20 to 0dB in 0.1dB steps
Curving
Frequency	20Hz to 20kHz
Gain	-20 to 0dB in 0.1dB steps

System Parameters
No. of Preset	24
Delay Units	Millisecond, Feet, Meter, SP
Inputs	Copy / Paste / Default
Mode	User / Administrator

General
Power	90-265 VAC (50/60Hz)
Dimensions (H x W x D)	44mm x 483mm x 229 mm
Weight	3.6 Kg
