High-Precision Turned Components

BARC Pin

Product overview

Precision shaped for dependable performance.

A close-tolerance CNC-turned pin with precision diameters, controlled runout and a refined surface finish for critical engineering applications.

Back to all products
Precision manufacturedBARC Pin
Manufactured onACE Micromatic J 300
Core processHigh-Precision CNC Turning
Quality focusRepeatable precision

Technical capability

Machine & product specifications

Key production data and achieved component characteristics.

01
Production equipment

Machine specification

Control
Fanuc 0i-TF Plus
Number of axes
2 Axis
Tool stations
8 Tools Station
Spindle power
7.5 kW
X travel
165 mm
Z travel
300 mm
02
Finished component

Product specification

OD / ID tolerance
10 microns
Runout
10 microns
Process capability
High-precision turning

Machine & component

From capable machine
to finished product.

See the dedicated production equipment alongside the precision component it manufactures.

ACE Micromatic J 300 production machine
Production machineACE Micromatic J 300

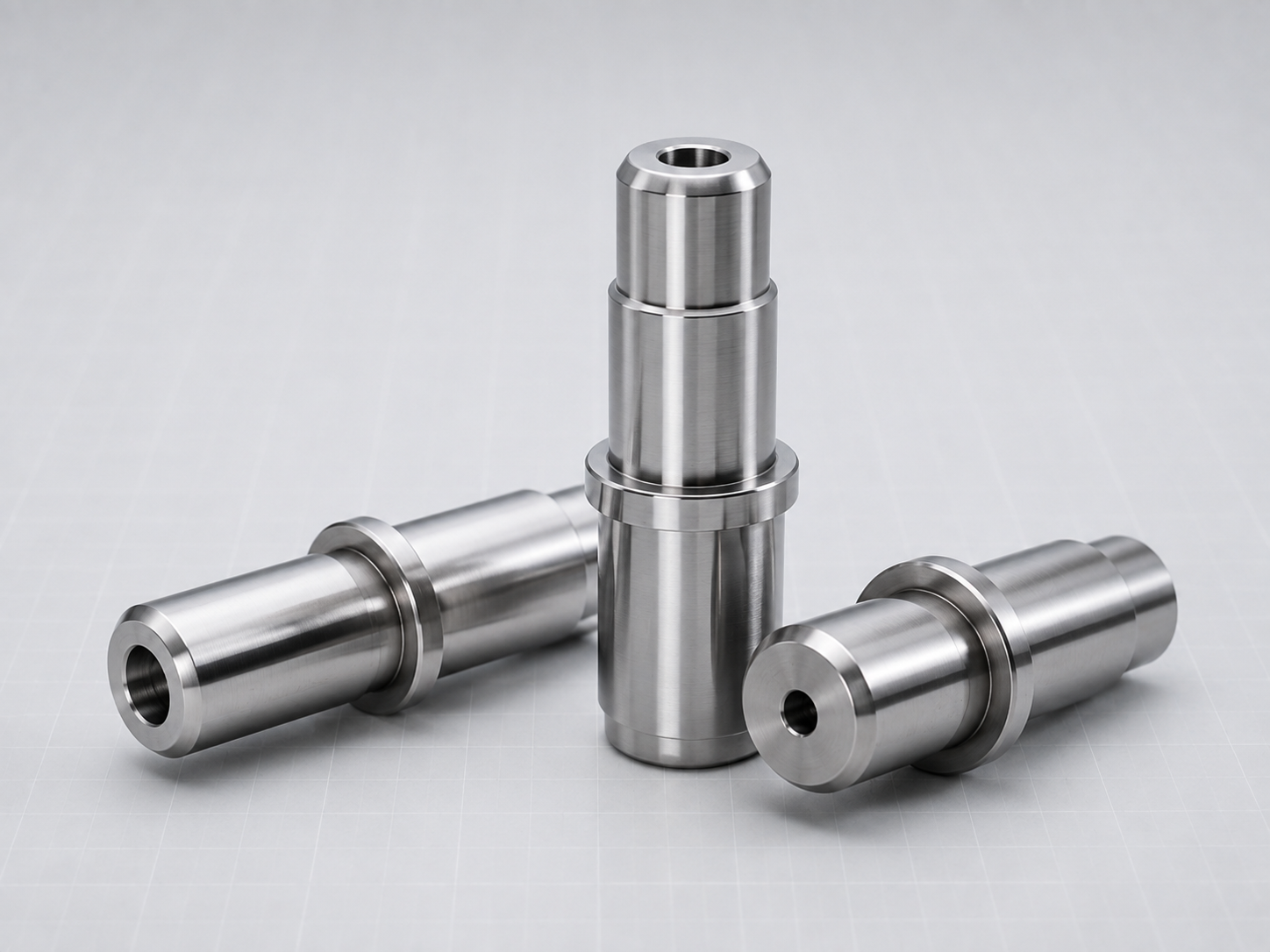

Finished BARC Pin
Finished componentBARC Pin

Performance built in

Made for critical engineering environments.

A close-tolerance CNC-turned pin with precision diameters, controlled runout and a refined surface finish for critical engineering applications.

01Micron-level tolerances
02Precision-ground finish
03Consistent profile geometry
Typical applications

Research equipmentIndustrial assembliesPrecision mechanisms
