Production equipment
Machine specification
- Control
- Fanuc Control
- Number of axes
- 5 Axis
- ATC capacity
- 60 Tools
- Spindle power
- 18 / 15 kW
- X travel
- 800 mm
- Y travel
- 800 mm
- Z travel
- 780 mm
- Table size
- 500 × 500 mm
Product overview
Precision shaped for dependable performance.

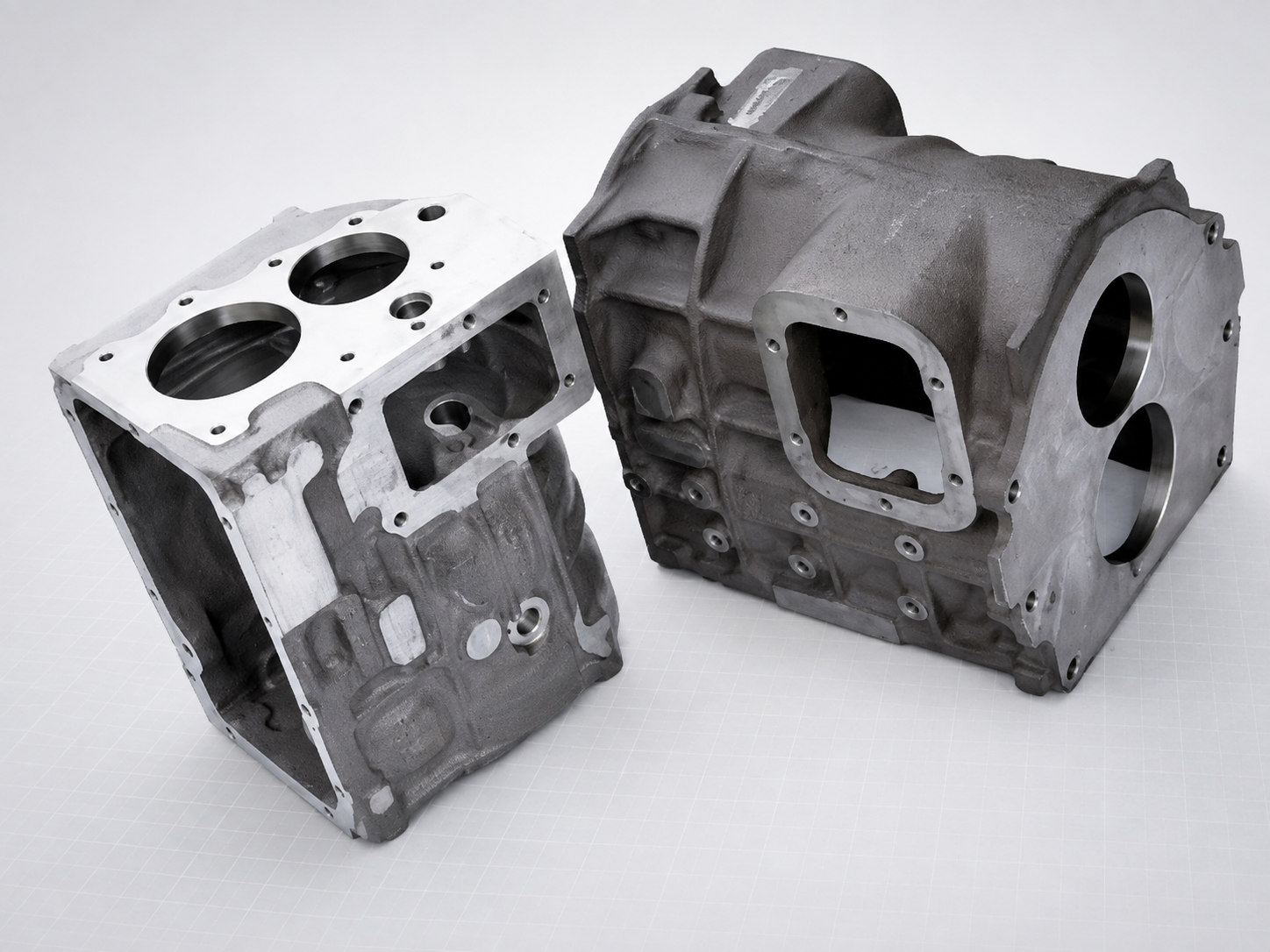

A high-accuracy commercial vehicle transmission housing machined across critical bores, mounting faces and datum features for dependable drivetrain assembly.
Back to all products Precision manufactured
Manufactured onTongtai HMC
Core process5-Axis Horizontal Machining
Quality focusRepeatable precision
Technical capability
Machine & product specifications
Key production data and achieved component characteristics.
02
Finished component
Product specification
- Bore tolerance
- H6
- Product size (L × W × H)
- 410 × 380 × 335 mm
- Flatness
- 0.05 mm
- Bore concentricity
- 20 microns
- Bore-axis parallelism
- 20 microns
- Axis position
- 30 microns
Machine & component
From capable machine
to finished product.
See the dedicated production equipment alongside the precision component it manufactures.
Performance built in
Made for critical engineering environments.
A high-accuracy commercial vehicle transmission housing machined across critical bores, mounting faces and datum features for dependable drivetrain assembly.
01Multi-face machining
02Controlled bore geometry
03Repeatable datum accuracy
Typical applications
Commercial vehiclesTransmission systemsHeavy engineering
