Our Products
SUBMERSIBLE CABLES
Manufactured from bright annealed 99.97% pure bare copper conductors these cables have low conductor resistance. The inner core is insulated with a special grade PVC compound. The tough robust outer HR PVC jacket protects it from the oils, greases, various chemicals and abrasions, thereby giving long life and electrical safety.
RANGE OF WIRE
1.5 Sq.mm to 50 Sq.mm Submersible Cables

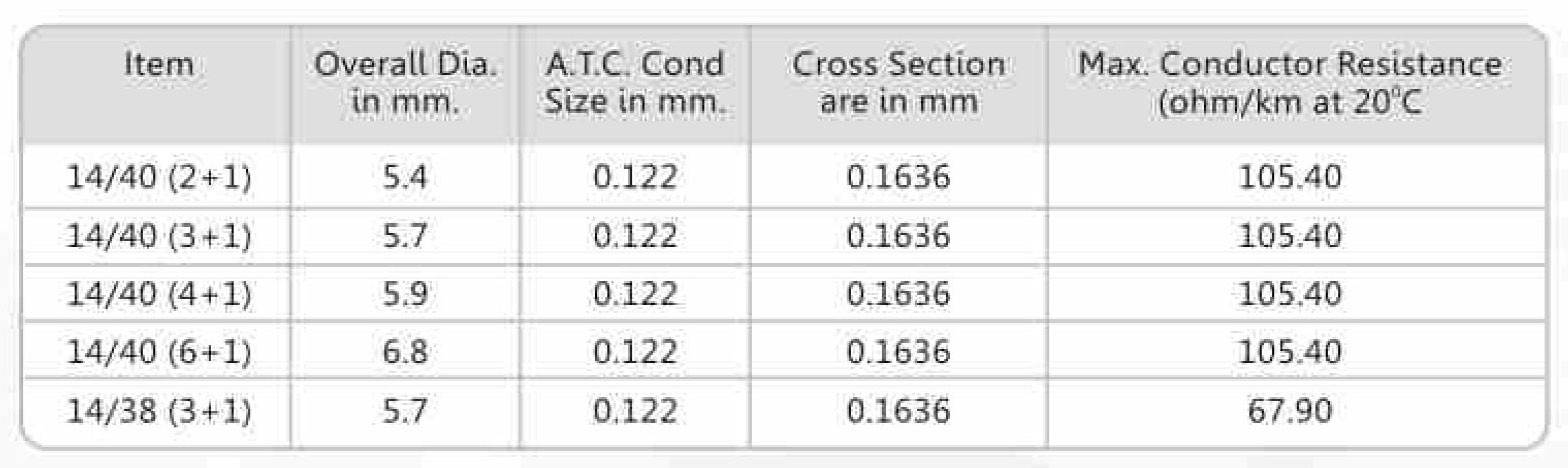

HOOK-UP WIRE & SHIELDED CABLE
Hook up wire is a single insulated conductor wire that may be used for low voltage, low current applications. The Lead wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines & appliances.
RANGE OF WIRE
7/38, 7/36, 14/38, 14/36, 16/0.2, 24/0.2 (Hook-Up Cables)
7/38 (Round Cables) Upto 24 Cores
14/38 (Round Cables) Upto 24 Cores
0.25-2.5 Sq.mm (Shielded Cable) Upto 24 Cores
ROUND MULTICORE CABLES
Manufactured from bright annealed 99.97% pure bare copper conductors. These cables are insulated with a specially formulated PVC compound. The Tough Robust outer PVC Jacket protects it from oil, grease, various chemicals which gives the cable a long life & safety.
RANGE: MULTI-CORE ROUND CABLE
• 0.5 Sq.mm to 120 Sq.mm (upto 4 Core)
• 4.0 Sq.mm to 16 Sq.mm (upto 7 Core)
• 0.5 Sq.mm to 2.5 Sq.mm (upto 24 Core)
OUR SPECIALITY
Till 24 Cores we provide all different colors for easy identification.

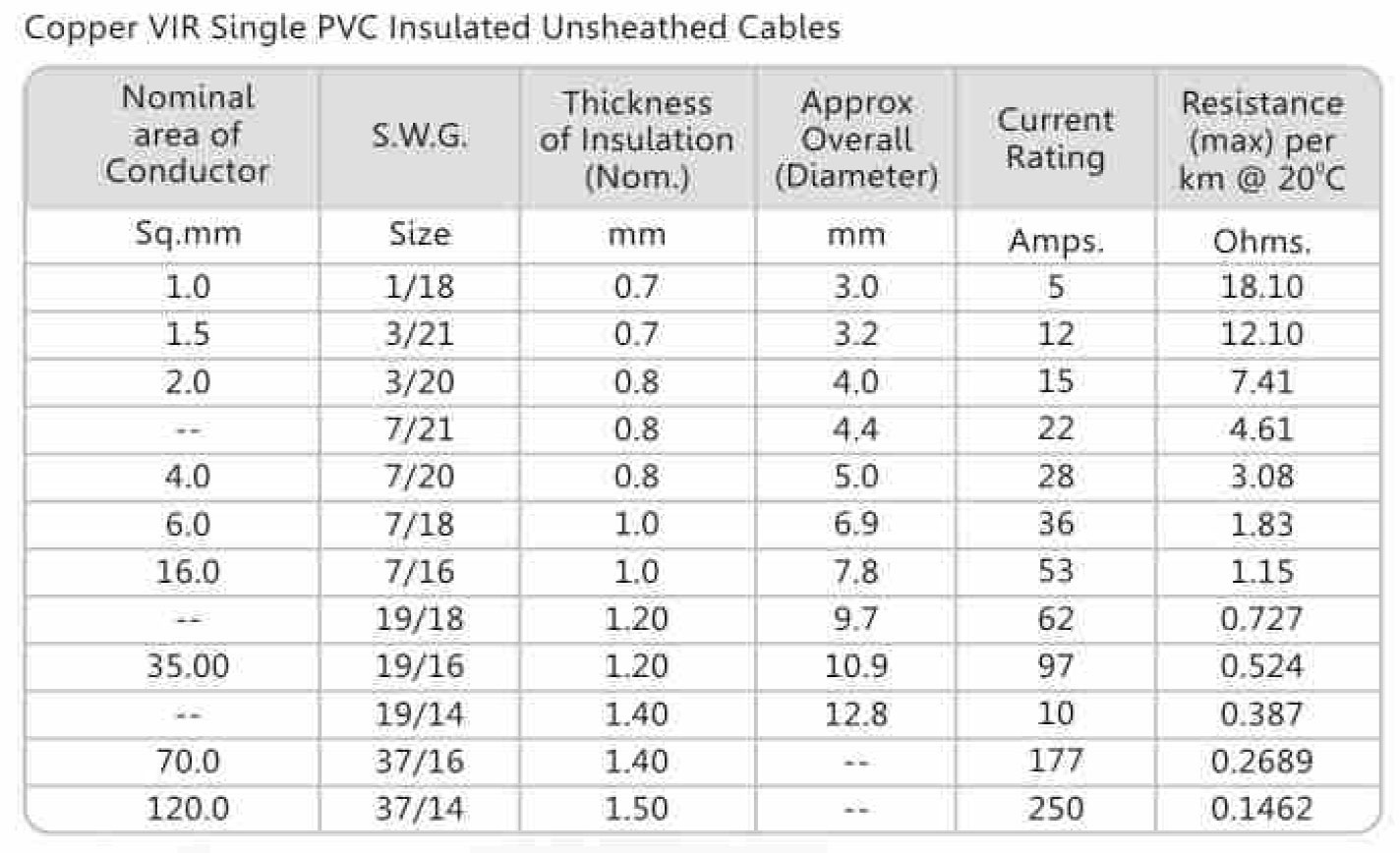

MULTISTRAND CABLES (FR)
Spykaar produces FR certified wires & cables, for you & your beloved one's safety. Wires insulated with the most premium quality of fire-resistant (FR) mineral PVC which can withstand flames & heat up to 1050 C without melting.
RANGE OF WIRE
Single Core, Size: 0.5 Sq.mm to 630 Sq.mm
APPLICATIONS
Highly used in house wiring, industrial wiring, industrial motors, UPS, stabilizers, wiring harness, panel boards, solar system & more.
CCTV CABLES
The Closed Circuit TV l Video Surveillance business is the fastest-growing part of our portfolio of products. Through the convergence of security and I.P. camera systems and card access are now under the direction of the corporate IT Department. There is a tremendous demand currently in the video recording world. Digital Video Recording has taken place of old analog tape systems. End users now can designate space on their network and store footage digitally. This technology upgrade is comparable to how compact disks have led to the demise of cassette players. Remote access is now a standard offering, which requires the assignment of an IP address to your network.
Digital Video Recording
• Eliminates the time and effort designated for changing tapes.
• Allows quick playback with enhanced viewing clarity.
• Enables easy remote access from multiple designated PC's.
• Offers simplified storage on your network.
MINIATURE CIRCUIT BREAKER
Life with Spykaar MCB's a range of Miniature Circuit Breakers which will make sure that your home is not just sweet but a safe place to live in too. The moment you have Spykaar MCB installed in your house you can just take a sigh of relief for a lifetime.
MCB'S ELCBTS
• Dual-Protection thermal-magnetic trip tough fire-resistant body.
• Trip fire mechanism
• Current limiting design for short circuit fault clearance more than 6/10kA
FR PVC INSULATION TAPE
The PVC Electrical Insulation Tape is made out of Poly Vinyl Chloride Film, These insulation tapes find a wide application in electrical applications for their good adhesion and insulation properties. The tape is coated with a specially formulated adhesives that make it resistant to moisture, alkalis and oils. Our product is 'ISI' marked and meets good standards.
PVC INSULATION TAPE
• Stretchable
• Moulds itself to any surface Grips firmly
• Weather-proof
• Non-ageing
• Withstands up to 40kV
• Resistant to acid, Alkalis and oils
• Long exposure to water does not destroy insulation properties.

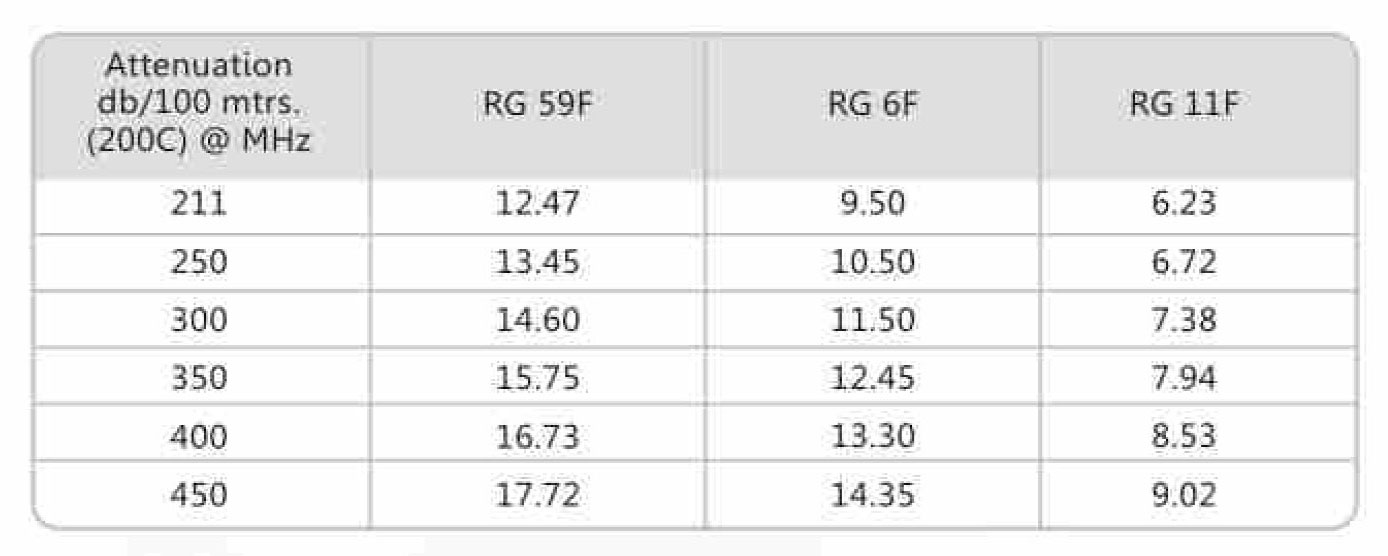

CO-AXIAL CABLES
Spykaar co-axial cables are used for transmission of audio and video signals in cable TV networks. The cables offer higher bandwidth for your customers to receive the maximum number of channels with a high level of picture and sound quality. The center conductor is made of electrolytic grade copper and ensures better signal transmission. It is insulated with nitrogen gas-injected foam polyethylene which is superior and more environment-friendly than chemical foam.
Digital Video Recording
• High-quality co-axial cable for cable TV network.
• The special jacketing offers increased life even in rugged conditions.
• Notch free attenuation values over a wide band of frequencies.
DISTRIBUTION BOARD
High-quality electrical distribution boards for domestic and industrial use. These boards are suitable for surface or flush mounting on the electricity supply system. The special epoxy powder coat on the surface of the board provides protection against corrosive environment. Our range of distribution boards is available in both single as well as double door design.
SPECIFICATION
• SPN/TPN DB's Single Door
• SPN/TPN DB's Double Door
• White line SPN/TPN DB's with transparent cover
• Phase selector distribution board
• Vertical Distribution Board
• Plastic S. Sheet Steel
• Distribution Board/ Plug S Socket DB SPN/TPN
Working Voltage up to 1100V
RANGE OF WIRE
1.5 Sq.mm to 50 Sq.mm Submersible Cables
