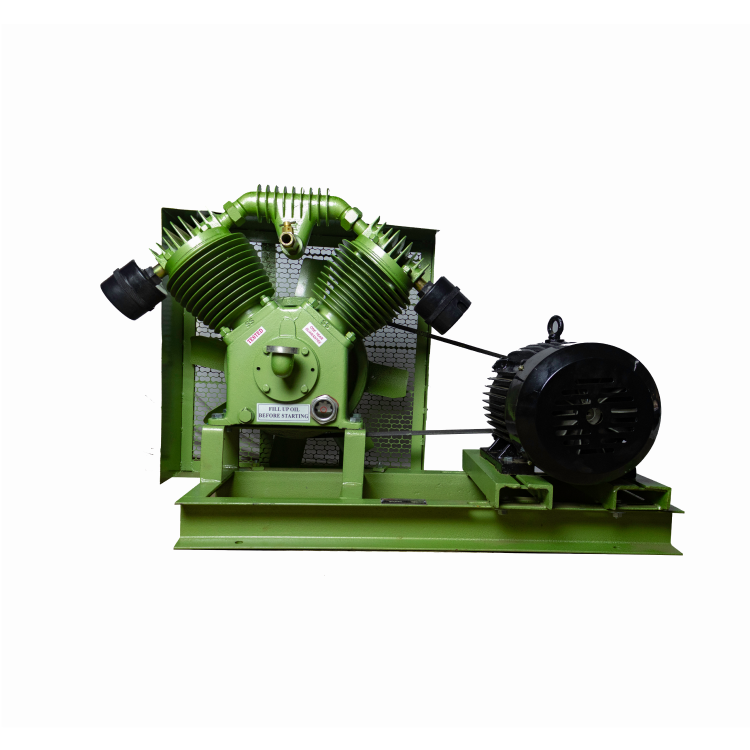

Model : CEC Make – BC6A , Reciprocating Compressor
Type : Double Cylinder, Oil Lubricated
Displacement : 264 LPM (9.32CFM)
Working Pressure : 9 kg/cm 2
Compressor Speed : 720 RPM
Compressor Stage : Single
No. of Cylinders : Double
Cylinder Bore Diameter : 60.33 mm, 60.33mm
Stroke : 85 mm
Piston : Made of low expansion high grade silicon/Aluminium Alloy

Type of Valves : Finger Type: Made of stainless steel hardened

                          Strip sheets.
Performance Testing : As per IS 5456
