ELT 1500
Technical Specifications

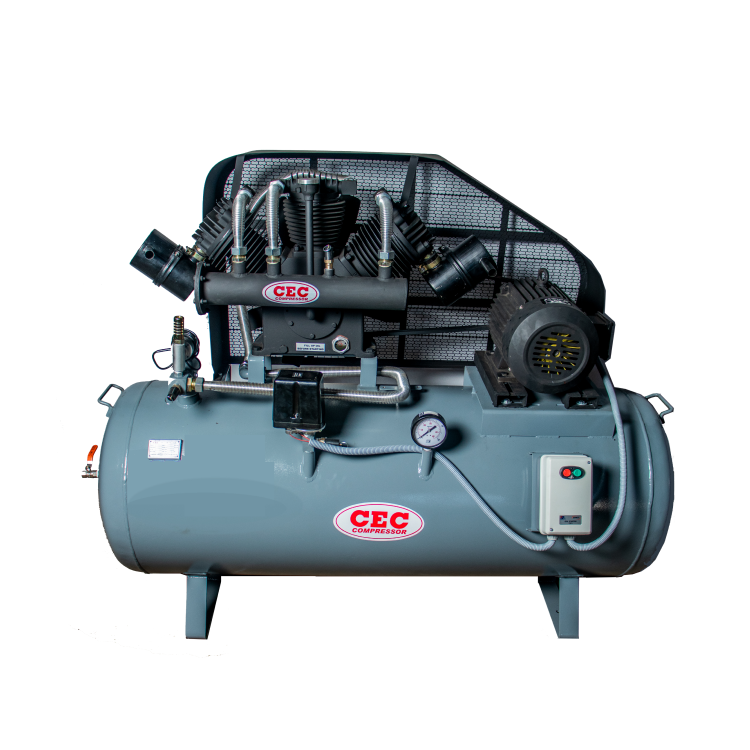

Model : CEC Make – ELT 1500 Two Stage Triple Cylinder
Splash Lubricated Air Compressor.
Motor HP : 15 HP
Type : Reciprocating, Air Cooled Model
Displacement Capacity : 1436 LPM (50.70 CFM)
Free Air Delivery : 1120 LPM ( 39.55 CFM)with admissible tolerance
as per IS 5456 standards
Working Pressure : 12 Kg/cm2
Compressor Speed : 1075 RPM at motor speed of 1440 RPM
Compressor Stage : Two
No of Cylinder : Three
Cylinder Bore dia : 100mm, 70mm, 100mm
Stroke : 85mm
Piston : Made of low expansion high grade silicon aluminium alloy.
Type of Valves : Integrated Disc Valve – I Stage,
Finger type made of stainless steel hardened
strip sheets – II Stage
Fan Pulley : Cast Iron Pulley - Dynamically balanced.
Accessories
Air Receiver Tank
Capacity : 500 Litres, Horizontal model
Working Pressure : 12 Kg/cm2
Maximum Pressure : 18 Kg/cm2
Starter : Star Delta BCH / TC/ L&T
Auto Pressure Control : Provided Switch (Auto Start / Stop Switch)
“V” Belt : “C” type - 2 Nos
Non return valve : Made of aluminium casing and forged gunmetal
guide and spindle.
Safety Valve : 3 Nos
Air Delivery Line - 1 No
Intercooler or dampener manifold - 1 No
Air Receiver - 1 No
Pressure Gauge : 100mm dia : Range 0 – 400 PSI
Air Delivery Valve : 1/ 2 ” BSP size
Water Drain Valve : Provided
(manual type)
Belt Guard : Provided
Air Cleaner : Cloth woven type filter elements inside
metal cover box – 2 Nos are provided.
Delivery Unloader Valve : 1 No : Provided ; It is actuated by a solenoid switch ;with solenoid valve help to by – pass pressurised air in the delivery line whenever motor stops.
Air delivery pipe : Made of finned aluminium pipe for effective heat transfer. (Compressor to air receiver)
Motor
Make : CEC SMART Make, TEFC, Foot Mounted
Rating : 15 HP
Type of cooling : Fan Cooling
RPM : 1440
Insulation : “B”Class
Voltage : 415 ± 8% (3 Phase)
Frequency : 50 Hz ± 5%
Current : 22 Amps
Degree of Protection : IP 44
Frame Size : 160 L
Dimensions as per : IS 1231
Performance Tested as per : IS 325
Performance Value as per : IS 878
