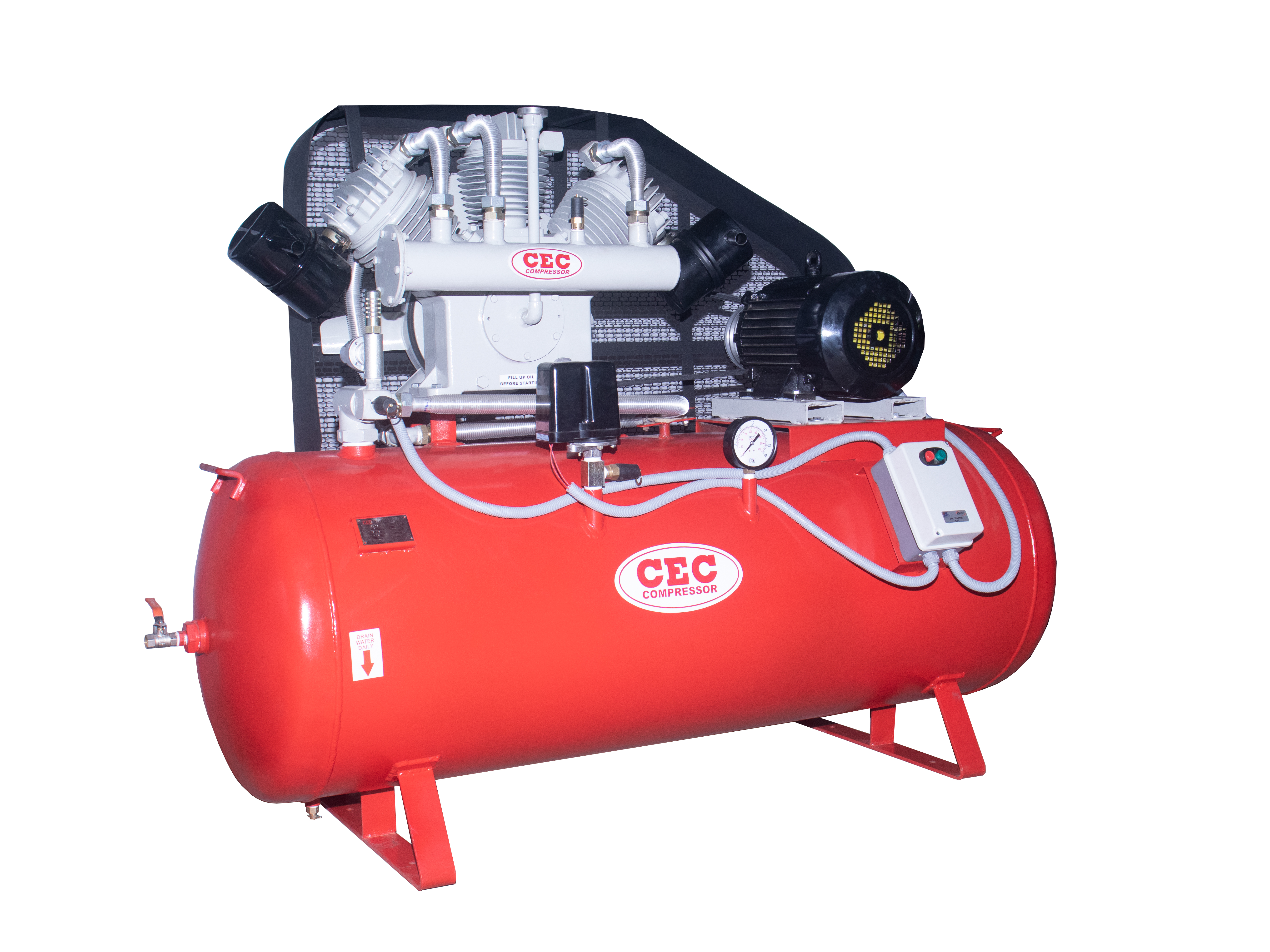

Air Receiver Tank

Capacity : 500 Litres, Horizontal

Working Pressure : 12 Kg/cm2

Maximum Pressure : 18 Kg/cm2

Starter : D.O.L. Starter, Make BCH / TC

Auto Pressure Control : Provided

Switch (Auto Start / Stop Switch)

 “V” Belt : “B” type - 2 Nos

Non return valve : Made of aluminium casing and forged gunmetal guide and spindle.

Safety Valve : 3 Nos

Air Delivery Line - 1 No

Intercooler or dampener manifold - 1 No

Air Receiver - 1 No

Pressure Gauge : 100mm dia : Range 0 – 400 PSI

Air Delivery Valve : ½” BSP size

Water Drain Valve : Provided

(manual type)

Belt Guard : Provided

Air Cleaner : Cloth woven type filter elements inside metal

cover box – 2 Nos are provided.

Delivery Unloader Valve : 1 No : Provided ; It is actuated by a solenoid switch ;

with solenoid valve help to by – pass pressurised air in the delivery

line whenever motor stops.

After Cooler cum : Made of finned Aluminium pipe for effective heat transfer.

Air delivery pipe (Compressor to air receiver)

Inter Cooler : Provided with Aluminium finned pipes from HP/LP Cylinders.

Make : CEC SMART Make, TEFC, Foot Mounted

Rating : 10 HP

Type of cooling : Fan Cooling

RPM : 1440

Insulation : “B”Class

Voltage : 415 ± 8% (3 Phase)

Frequency : 50 Hz ± 5%

Current : 14.5 Amps

Degree of Protection : IP 44

Frame Size : 132 L

Dimensions as per : IS 1231

Performance Tested as per: IS 325

Performance Value as per : IS 8789
