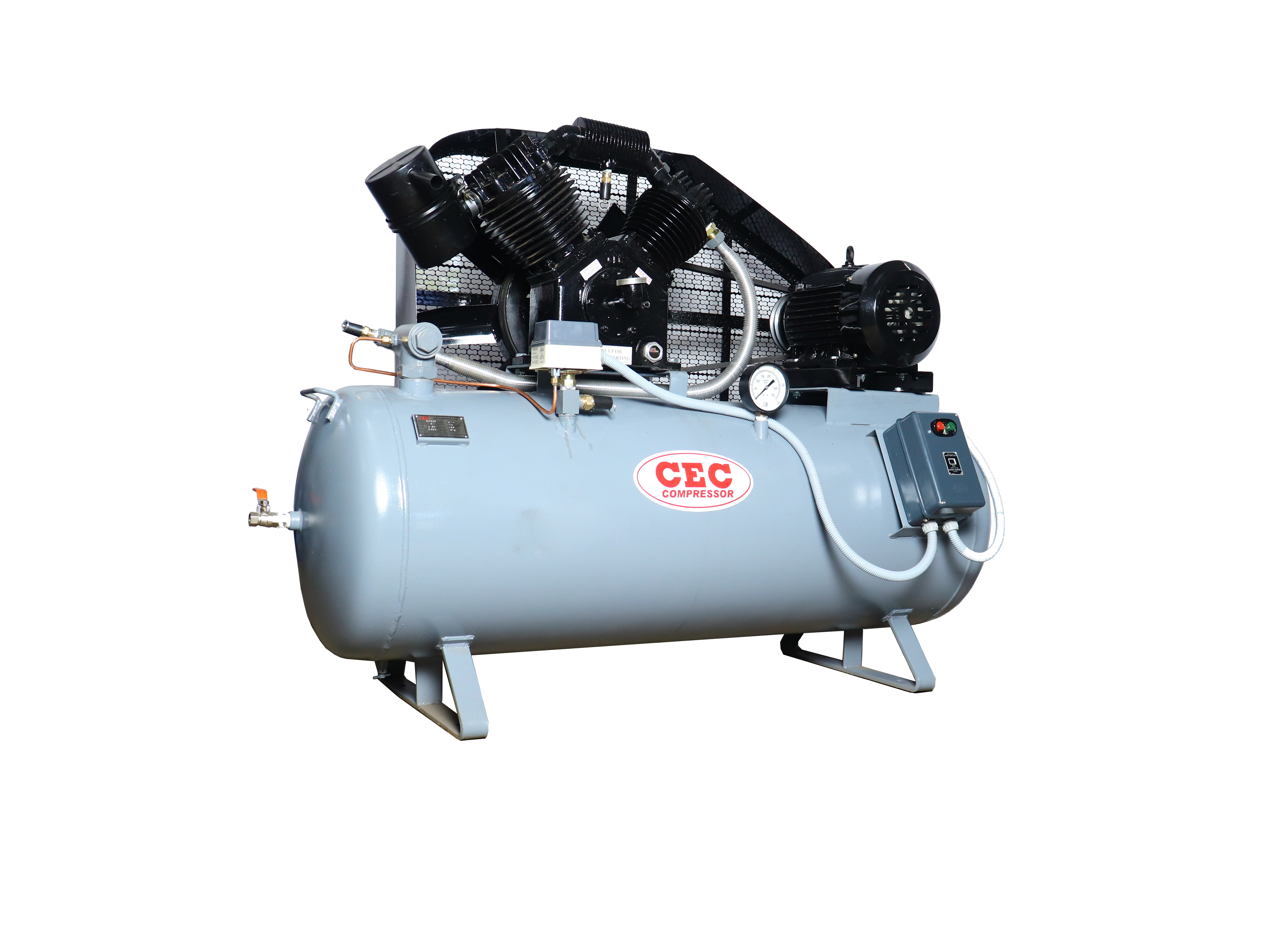

ELT 500
.jpg)
Technical Specifications
Model : CEC Make - ELT 500 Two Stage Double Cylinder
Splash Lubricated Air Compressor .
HP : 5 HP
Type : Reciprocating, Air Cooled Model
Displacement : 480 LPM or ( 16.95 CFM )
Free Air Delivery : 374 LPM or ( 13.22 CFM ) with tolerance as per IS 5456
Working Pressure : 12 Kg/cm2
Compressor Speed : 720 RPM
Compressor Stage : Two
No of Cylinder : Two
Cylinder Bore dia : 100mm, 60mm
Stroke : 85mm
Piston : Made of low expansion high grade silicon/Aluminium Alloy
Type of Valves : Finger Type : Made of stainless steel hardened
Strip sheets.
Fan Pulley : Cast Iron Pulley – Dynamically balanced.
Accessories
Air Receiver Tank
Capacity : 270 Litres
Working Pressure : 12 Kg/cm2
Maximum Pressure : 18 Kg/cm2
Starter : D.O.L Starter Make L & T / BCH / TC
Auto Pressure Control Switch : Provided
(Auto Start / Stop Switch)
“V” Belt : B Groove x 2 Nos
Non Return Valve : Made of aluminium casing and forged
gunmetal guide and spindle.
Safety Valve : 3 Nos
Pressure Gauge : 100mm dia : Range 0 – 400 PSI
Air Delivery Valve : ½” BSP Size
Water Drain Valve (Manual Type): Provided
Belt Guard : Provided
Air Filter : 1 No
Aluminium finned intercooler : Provided
(Between Cylinder)
Aluminium finned aftercooler pipe: Provided
Motor
Model : CEC SMART Make, TEFC, Foot Mounted
Rating : 5 HP
Type of cooling : Fan Cooling
RPM : 1440
Insulation : “B” Class
Voltage : 415V, ± 8% (3 Phase)
Frequency : 50 Hz ± 5%
Current : 8.1 Amps
Degree of Protection : IP 44
Frame Size : 112M
Dimensions as per : IS 1231
Performance Tested as per : IS 325
Performance Value as per : IS 8789
