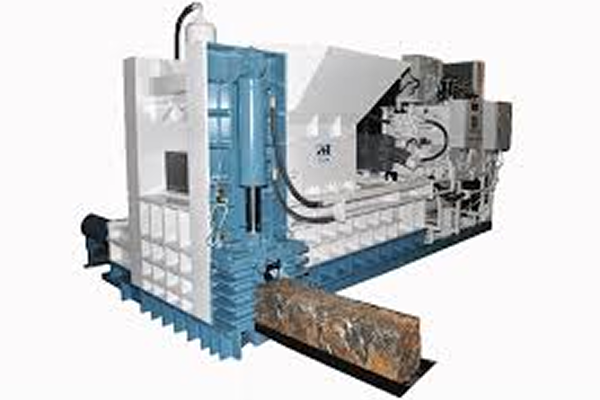

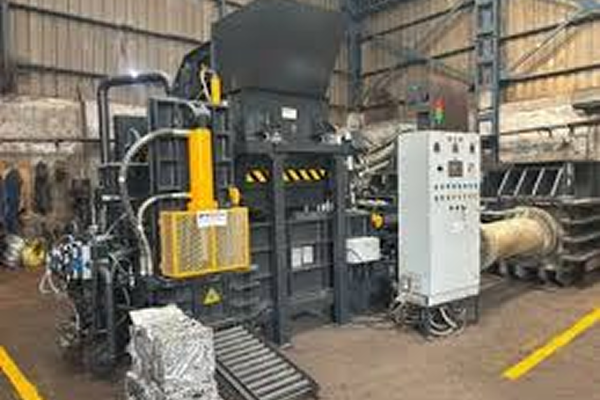

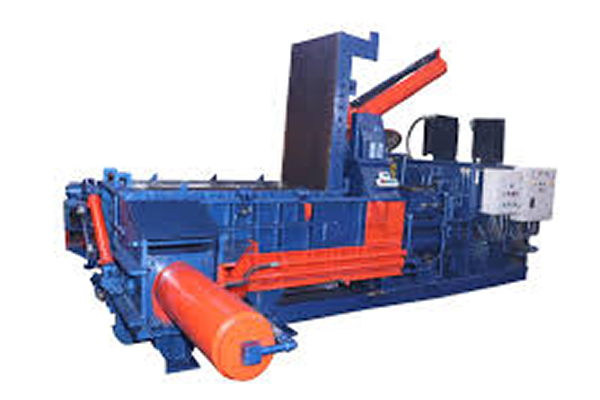

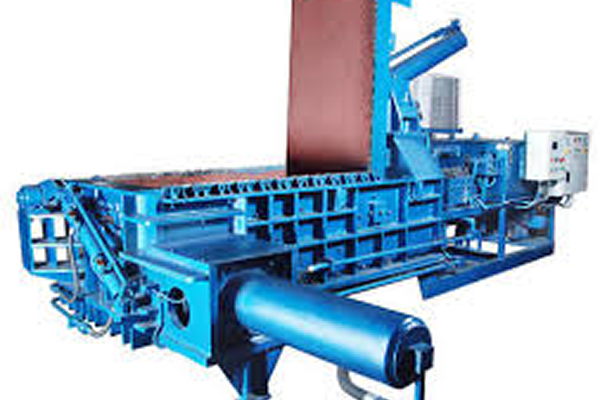

Double Action Baling Press

Description

Fabtex Engineering Works' Double Action Baler is designed to efficiently compact a wide range of metal scraps, including UBC cans, stainless steel, copper, aluminium, steel cans, wire, and metal sheets. Our machine's unique double-action compaction technique compresses scrap lengthwise and from the top, resulting in dense bales. Ideal for small to medium-scale scrap processing, our baler can process 5–8 tons of metal scrap per shift, making it perfect for scrap yards and industrial applications. Fabtex Engineering Works offers a reliable and compact solution for metal recycling needs.

Get Enquiry

Applications

Aluminium sheets
Plates
Profiles
Extrusions
Window frames
Panels
Wheels
Rims
Car parts
Radiators
Used beverage cans (UBC)
Aluminium containers

Technical Details

Specification	FAB/DAB 1	FAB/DAB 2	FAB/DAB 3	FAB/DAB 4
Press Force (lbs)	200,000 lbs	500,000 lbs	320,000 lbs	500,000 lbs
Motor Power (hp)	40.23 hp	29.50 + 29.50 hp	49.62 + 20.12 hp	49.62 + 49.62 hp
Press Chamber (inch)	39.37 × 29.53 in	39.37 × 29.53 in	59.06 × 39.37 in	78.74 × 55.12 in
Bale Size (inch)	11.81 × 11.81 in	9.84 × 9.84 in	11.81 × 11.81 in	15.75 × 15.75 in
Capacity (Bales/h)	60	60	60	60
Operation Type	Automatic	Automatic	Automatic	Automatic

Add-On Features:

Automatic lubrication system for reduced maintenance
Customizable bale sizes and shapes
Integrated safety features for operator protection
High-pressure hydraulic system for efficient compaction
Double Action system
Blades provided on frame and door
Door locking system by spring, optional by hydraulic cylinder
Front ejection / top ejection

Experiences:

Over a decade of expertise in manufacturing baling press machines
Successfully installed and operational in numerous scrap yards and industries
Proven track record of increasing productivity and reducing labor costs
Trusted by clients worldwide for reliable and efficient metal recycling solutions.
