Paper Baler Press
Description

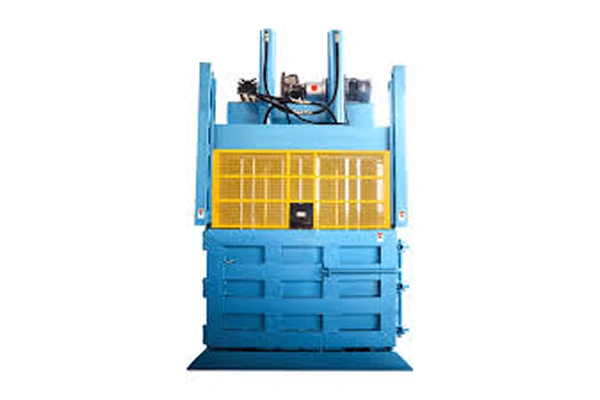

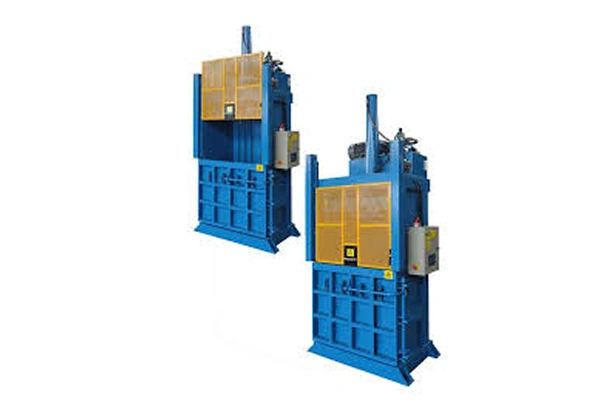

Our Vertical Hydraulic Baling Press Machine is designed to meet the demanding needs of the U.S. industrial market, providing efficient and reliable baling solutions for paper, plastic, and cardboard waste. Built to withstand heavy-duty use, this machine delivers high-performance compaction and baling capabilities.
Applications
- ONP (Old New Paper)
- OMG (Old Magazines)
- Kraft Papers
- Shredded papers
- Packaging paper
- Mixed Paper
Technical Details
| Model | FAB/PB-20 | FAB/PB-30 | FAB/PB-40 | FAB/PB-50 | FAB/PB-60 |
|---|---|---|---|---|---|
| Bale Size (L×W×H) (mm/inch) | 700 × 500 × 400 mm / 27.56 × 19.69 × 15.75 inch | 900 × 600 × 400 mm / 35.43 × 23.62 × 15.75 inch | 1100 × 700 × 400 mm / 43.31 × 27.56 × 15.75 inch | 1500 × 700 × 600 mm / 59.06 × 27.56 × 23.62 inch | 1800 × 1000 × 600 mm / 70.87 × 39.37 × 23.62 inch |
| Bale Weight (kg/lbs) | Up to 40 kgs / 88.2 lbs | Up to 100 kgs / 220.5 lbs | Up to 160 kg / 352.7 lbs | Up to 250 kg / 551.2 lbs | Up to 350 kg / 771.6 lbs |
| Production (Bales/hr) | Up to 2 | Up to 3 | Up to 3 | Up to 3 | Up to 4 |
| Motor Power (HP) | 5 | 7.5 | 10 | 10 | 15 |
| Overall Size (inch) | 72" × 36" × 108" | 72" × 48" × 120" | 72" × 48" × 120" | 84" × 48" × 120" | 84" × 48" × 120" |
Core Performance
- High Compaction Efficiency – Compresses paper, plastics, and cardboard by up to 90%, reducing storage and transport costs.

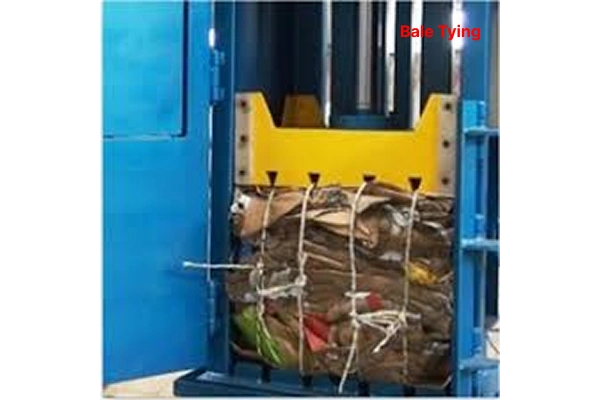

- Uniform & Easy Handling – Delivers consistent bales with a simple tie system for quick strapping and recycling.
- Flexible Operation with Adaptable Power Supply – Supports both automatic/manual cycles and can be customized to different power requirements.
- Durability & Safety – Built with heavy-duty components and advanced safety features for long-lasting, secure performance.
- Standards Compliance – Designed to meet U.S. industrial standards, ensuring reliability and quality in every application.
Special Features (Common)
- Customisable machine capacities.
- Single Cylinder system.
- Door Lock safety system.
Add-On Features
- Semi–Automatic ejection system.

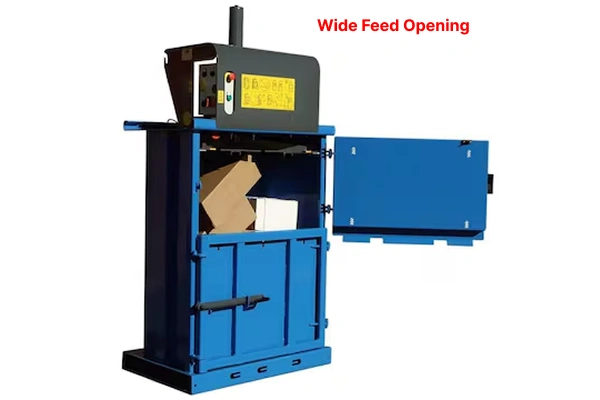

- Wide feed opening.
- No special foundation is required.
- Low space requirement.
- 180° safety system.
- Optional sliding doors.
Why Choose Our Vertical Hydraulic Baling Press?
- Reliable Performance: Built to withstand heavy-duty use and deliver consistent results.
- Customizable: Can be tailored to meet specific application requirements.
- Excellent Support: Backed by our dedicated customer support team.
Experience the Efficiency of Our Vertical Hydraulic Baling Press
- Discover how our Vertical Hydraulic Baling Press Machine can benefit your business. Contact us to learn more about our baling solutions and how we can help you achieve your waste management goals.
