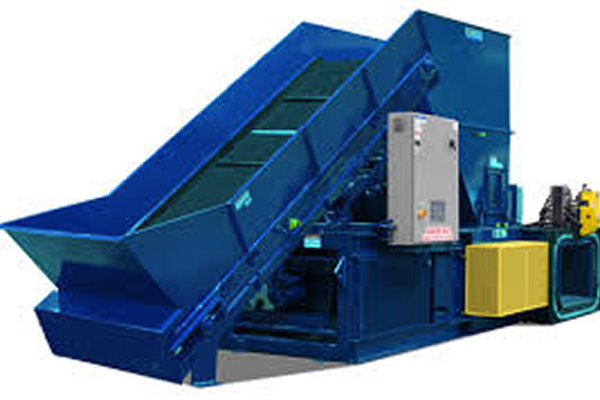

Small-Sized Two Ram Baler
Description
Fabtex Engineering Works offers efficient baling solutions for waste management. Their small-sized two-ram balers cater to various industries, providing cost-effective and environmentally sustainable options. Ideal for recycling centers, waste management facilities, and manufacturing units.
Applications
- Cardboard (OCC, Carton)
- Pet Bottles
- Plastic & Paper
- Waste Cloth
- Shredded Paper
- Municipal Waste
- HDPE
Technical Details
| Specification | FAB/2RB/20 | FAB/2RB/40 |
|---|---|---|
| Pressure (tons / lbs) | 20 tons / 44,092.5 lbs | 40 tons / 88,184.9 lbs |
| Motor Power | 7.5 kW | 15 kW |
| Oil Tank Volume | 160 L | 540 L |
| Feed Opening Size (L × W) (inch) | 27.56 × 18.11 | 43.31 × 28.74 |
| Bale Size (L × W × H) (inch) | 19.69 × 19.69 × 19.69 | 29.53 × 29.53 × 29.53 |
| Bale Weight (kg / lbs) | 30–70 kg / 66–154 lbs | 70–150 kg / 154–331 lbs |
| Overall Dimension (L × W × H) (inch) | 145.67 × 106.30 × 70.87 | 183.07 × 118.50 × 95.67 |
| Machine Weight | 3 tons / 6,613.87 lbs | 5 tons / 11,023.1 lbs |
Key Features
- Dual-ram system for efficient baling
- Automatic operation with PLC control
- Safety features (e.g., emergency stop, safety gates)
- Compact design for small spaces
- Energy-efficient hydraulic system
- Durable construction for long lifespan
- Customizable options for specific materials and applications
- Cyclone System or Conveyor options for feeding
