Textile Baler
Description
Our Manual Door Type Baling Press is ideal for new startups and small to medium-sized spinning mills (5000-25000 spindles). With over 200 installations worldwide, we've enabled small units to bale waste cotton and cotton efficiently, saving on transportation costs. Our press comes in five models with varying bale weights (90-180 kg) and production capacities (up to 800 kg/hr). It can handle diverse materials, including cotton, waste cotton, coir fiber, used clothes, polyester, short-cut fibers, and jute.
Applications
- Cotton
- Polyester
- Polypropylene
- Nylon
- Wool
- Rags
- Fabric scraps
- Shoes
- Foam (Sponge)
Technical Details
| Model | FAB/TXB/03 | FAB/TXB/06 | FAB/TXB/09 | FAB/TXB/10 | FAB/DOUBLE CYLINDER (DTXB/220) |
|---|---|---|---|---|---|
| Bale Size (L × W × H) (mm/inch) | 1220 × 600 × 600 mm / 48.03 × 23.62 × 23.62 inch | 1220 × 600 × 600 mm / 48.03 × 23.62 × 23.62 inch | 1220 × 600 × 600 mm / 48.03 × 23.62 × 23.62 inch | 1270 × 510 × 660 mm / 50.00 × 20.08 × 25.98 inch | 1220 × 460 × 600 mm / 48.03 × 18.11 × 23.62 inch |
| Bale Weight (kg/lbs) | Up to 100 kg / 220.46 lbs | Up to 130 kg / 286.60 lbs | Up to 160 kg / 352.74 lbs | Up to 180 kg / 396.83 lbs | Up to 180 kg / 396.83 lbs |
| Throughput (Bales/hr) | Up to 3 | Up to 3 | Up to 3 | Up to 4 | Up to 3 / Up to 6 |
| Motor Power (HP) | 5 / 7.5 | 10 | 15 | 20 | 25 / 30 |
Add-On Features
- Retainer claws to decrease labour fatigue
- Rapid hydraulic cylinders
- Fixed and movable box arrangements to increase machine safety
- Oil cooler with air/water arrangements

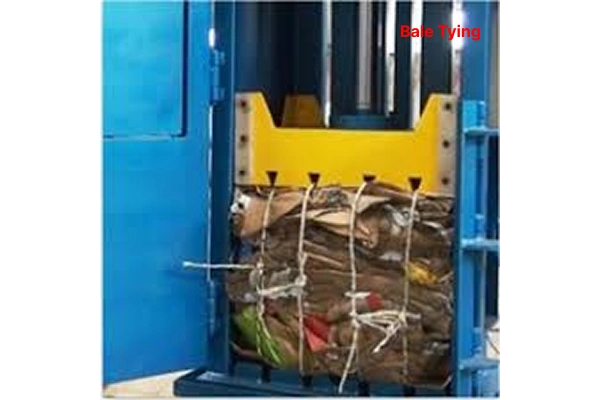

- Automatic bale tying
- Continuous cycle arrangement without PLC
Core Features
- Advanced lifting mechanism
- Powerful compression system
- Efficient baling process
- Compact design
- Reliable operation
Why Choose a Lifting Chamber Baler
- 1. Efficient Material Handling: Lifting Chamber Balers streamline the baling process, reducing labor and increasing productivity.
- 2. Compact Bales: Produces compact, uniform bales that are easy to store and transport.
- 3. Reduced Storage and Transportation Costs: Compact bales take up less space, reducing storage and transportation costs.
Experience
- 1. Proven Track Record: Fabtex Engineering Works has extensive experience in designing and manufacturing balers, including Lifting Chamber Balers.
- 2. Expertise in Textile Industry: Fabtex understands the specific needs of the textile industry and has developed balers that cater to these needs.
- 3. Customized Solutions: Fabtex offers customized solutions to meet the specific requirements of its clients, ensuring optimal performance and efficiency.
