Semi-Automatic Baling Machine
Description

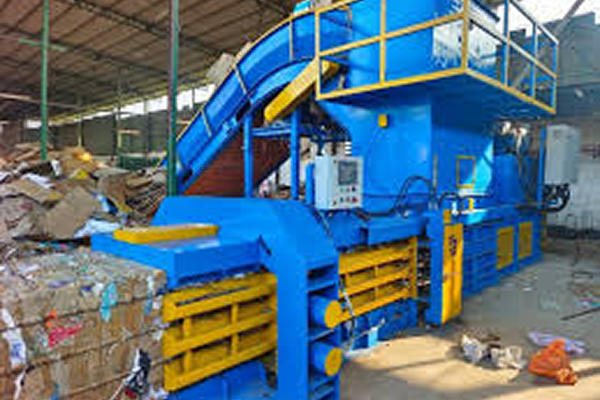

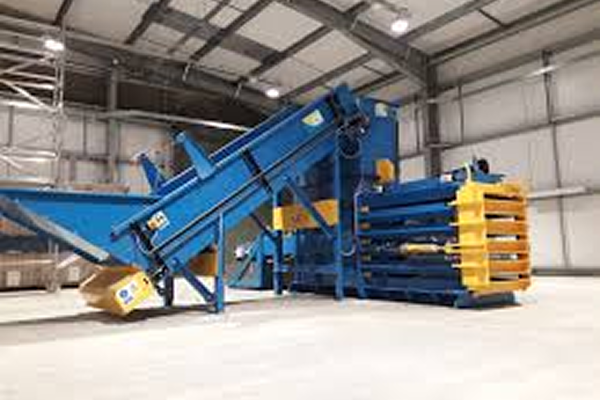

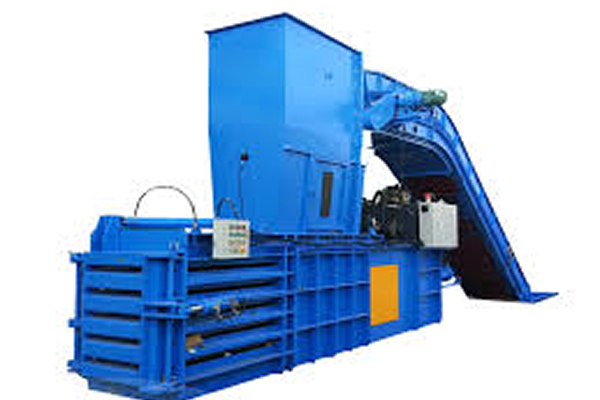

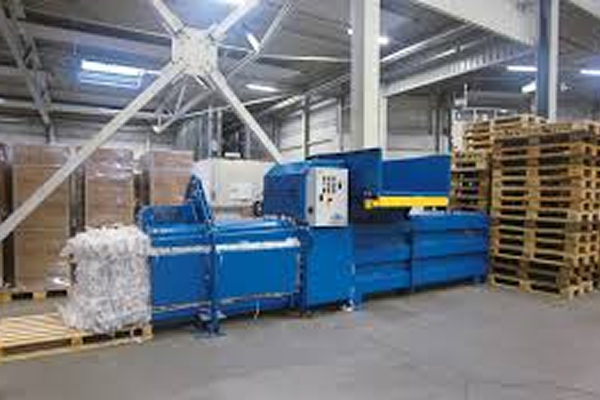

Fabtex Engineering Works' Semi-Automatic Horizontal Baling Presses deliver exceptional performance, compacting paper, plastic, and OCC cartons into dense, high-quality bales. Our machines efficiently process various types of paper and plastic waste, making them perfect for medium-scale recycling operations.
Each bale measures 75 x 110 inches with a length of approximately 1.2 m, allowing for optimal storage and transportation. With a packing capacity of 20–24 tons per 40' HQ container, our balers have helped over 100 satisfied clients achieve their recycling goals.
Applications
- Paper (ONP, OMG, Kraft Paper)
- Cardboard
- Carton Boxes
- Pet Bottles
- Natural Fibers
- Shredded Material
- Municipal Solid Waste
- Shredded Paper
- Hay
Technical Details
| Specification | FAB/MTB-40 | FAB/MTB-60 | FAB/MTB-80 | FAB/MTB-100 | FAB/MTB-120 |
|---|---|---|---|---|---|
| Bale Length (inch) | 35.43 | 39.37 | 43.31 | 43.31 | 47.24 |
| Bale Width (inch) | 31.50 | 43.31 | 43.31 | 43.31 | 43.31 |
| Bale Height (inch) | 28.35 | 31.50 | 31.50 | 43.31 | 43.31 |
| Bale Weight (lbs) | Up to 250 / 551 | Up to 350 / 771 | Up to 450 / 992 | Up to 700 / 1543 | Up to 800 / 1763 |
| Production (bales/hr) | Up to 6 | Up to 5 | Up to 5 | Up to 4 | Up to 4 |
| Motor Power (hp) | 20 | 25 | 30 | 30 | 40 |
| Overall Size (inch) | 216’ x 48’ x 84’ | 240’ x 60’ x 84’ | 276’ x 72’ x 96’ | 276’ x 84’ x 96’ | 300’ x 84’ x 94’ |
Specific Advantages
- One-button operation
- Hydraulic lifting chamber door for automatic bale ejection
- Bale guide island allows easy removal with forklift
- ‘V’-shaped blades ensure perfect integrity on the upper surface
Add-On Features
- Steel conveyor confirms reliability of the machine
- Horizontal cutter on feeding mouth for cutting excess material
- Oil cooler with air/water arrangements
- 180° safety system
- Continuous cycle arrangements with PLC
Benefits
- Low overall operating cost
- High productivity
- Super high-density bales
- Increased speed of movements
- Lower cycle times using high-pressure pumps
- Low energy consumption
- Easy installation
